Polyurethane fine screens, made for your machine.
BENAILI fine-screen panels are specified by opening, panel dimensions, reinforcement and hook geometry. Typical sizes are 1040 × 700 mm and 1387 × 1005 mm; other dimensions follow your approved drawing.
Polyurethane fine screens for screen equipment makers and parts suppliers.
BENAILI takes contract manufacturing orders for fine screening panels based on a customer drawing or sample. We agree panel and hook geometry, slot size, tolerances, your company marking and export packing. For Derrick equipment and similar machines, mounting dimensions are checked against your drawing or sample; fit of a specific panel is confirmed before manufacture. Drawings are available for regularly produced sizes. For other dimensions, we can prepare a drawing from your mounting dimensions and technical requirements for approval before production. BENAILI is an independent supplier and is not affiliated with Derrick.
Discuss an OEM order- Made to customer drawing or sample
- Customer logo and specifications on the frame
- Mounting and hook geometry checked
- Drawings for regular sizes or a new drawing to specification
- Batch supply to the agreed specification
Fine openings. Dimensions that fit your machine.
Typical size options include 1040 × 700, 1042 × 700, 1045 × 700, 1387 × 1005 and 1415 × 745 mm. Apertures, Shore A 85 / A90 hardness, hook geometry and reinforcement depend on the approved drawing and working conditions; availability of each combination is confirmed before quotation.
Common panel sizes
- 1040 × 700 mm
- 1042 × 700 mm
- 1045 × 700 mm
- 1387 × 1005 mm
- 1415 × 745 mm
- Custom dimensions to drawing
Custom hook and fixing geometry
We can manufacture custom hook dimensions and profiles. For an existing vibrating screen, send the hook cross-section, overall panel dimensions and installation drawing so the edges can be checked against the deck.
Available aperture / slot openings (mm)
Available opening sizes are listed below. The slot tolerance and whether a particular opening fits a panel design are confirmed against your drawing and application.
- 0.053
- 0.075
- 0.088
- 0.1
- 0.125
- 0.15
- 0.18
- 0.2
- 0.25
- 0.3
- 0.35
- 0.4
- 0.45
- 0.5
- 0.63
- 0.85
- 0.9
- 1
- 1.2
- 1.5
- 2.0
- 2.5
For a useful quotation
Send a drawing or sample, panel and hook dimensions, opening and tolerance, quantity, machine model and customer marking requirements. Include feed material, wet or dry process and delivery destination.
Send an inquiryA closer look at the panel and hook profile.

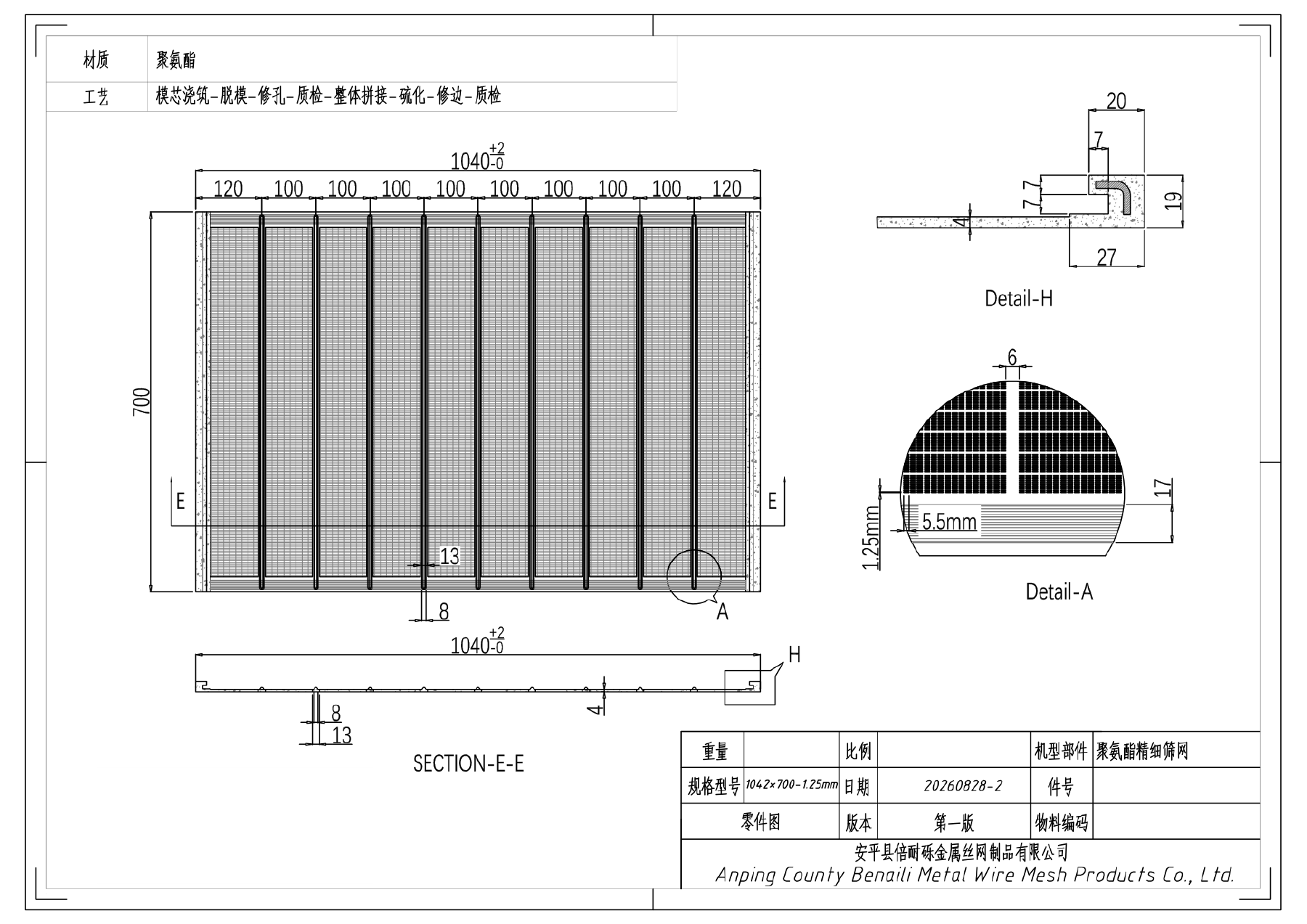

This 1042 × 700 mm polyurethane fine screen example with a 1.25 mm slot shows the panel layout, reinforcement and hook cross-section.
View full-size drawing ↗See the actual fine-screen panel
The screen surface and its edges both matter.
Actual fine-screen photographs show closely spaced slots, reinforcing ribs and the panel edge. For your installation, the opening tolerance, working surface thickness, hook cross-section and fixing dimensions are confirmed against the approved drawing.
What to confirm before ordering a fine screen
Start with the machine drawing and the target separation size. Confirm the panel dimensions, slot opening and tolerance, reinforcement layout, hook cross-section and mounting clearances together. A nominal opening alone does not establish whether a panel fits an existing screening machine.
For a quotation, send the drawing, quantity, material and operating conditions. State any required hardness, wear or inspection criteria on the approved specification. We can review custom opening and hook dimensions against the panel design before confirming production.
Clear edge marking. Real export packing.
Actual photographs of polyurethane fine screens, from identifying marks on the frame to preparation for shipment.

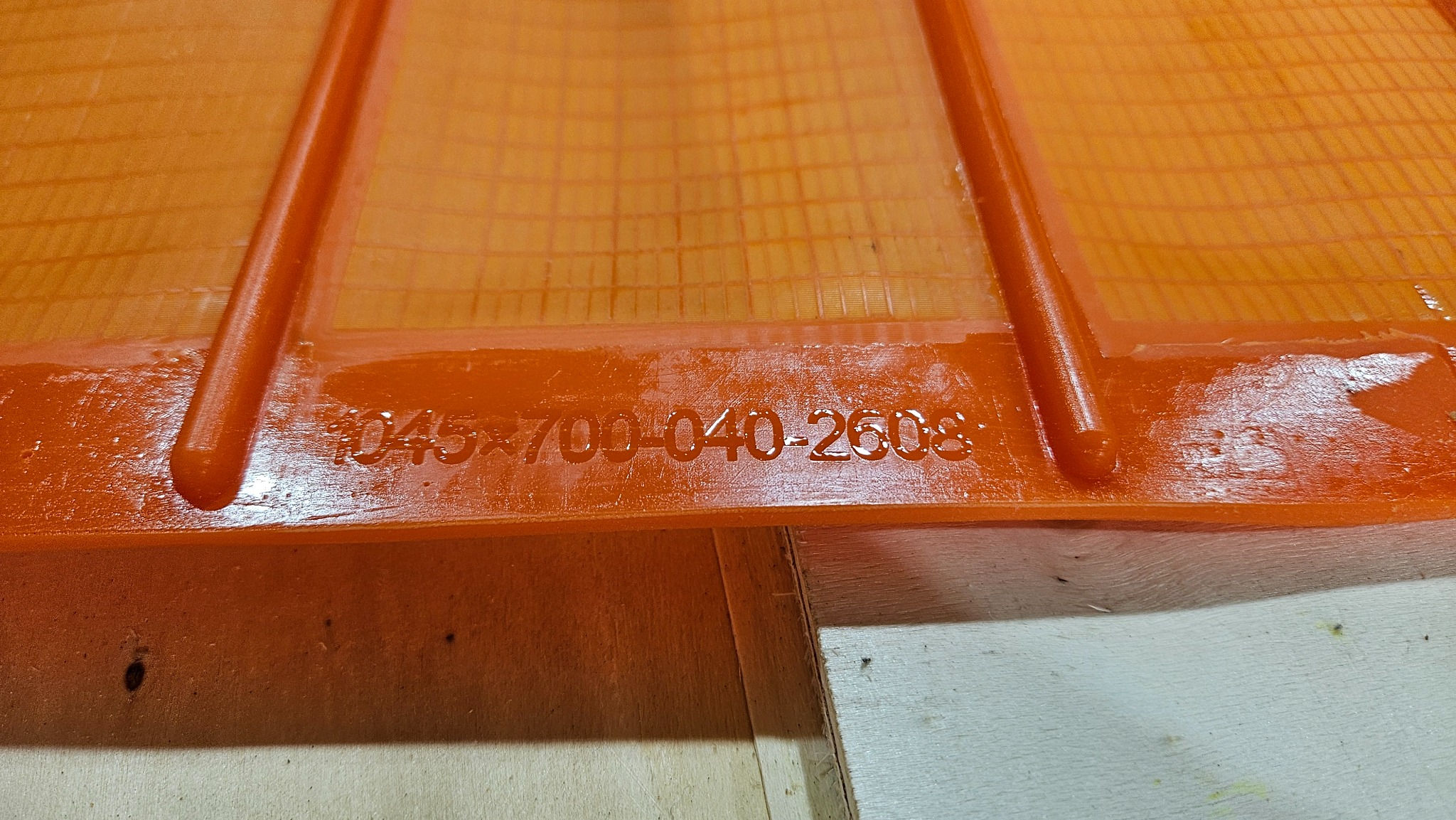

Laser marking on the frame
A customer logo, model or dimensions can be laser marked on the frame to the agreed artwork or specification for identification and installation checks. The photo shows a specification mark.
Export packing

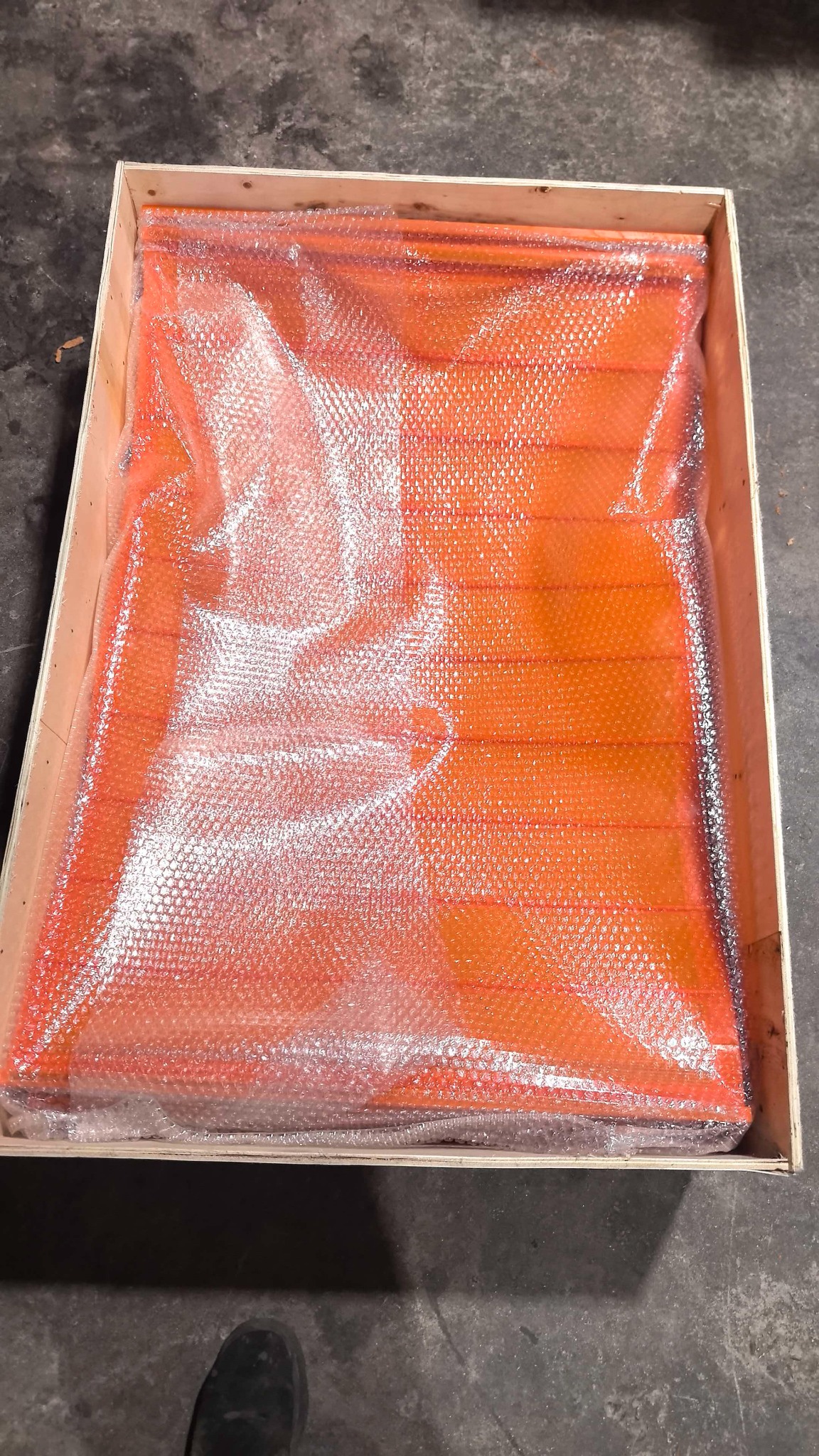

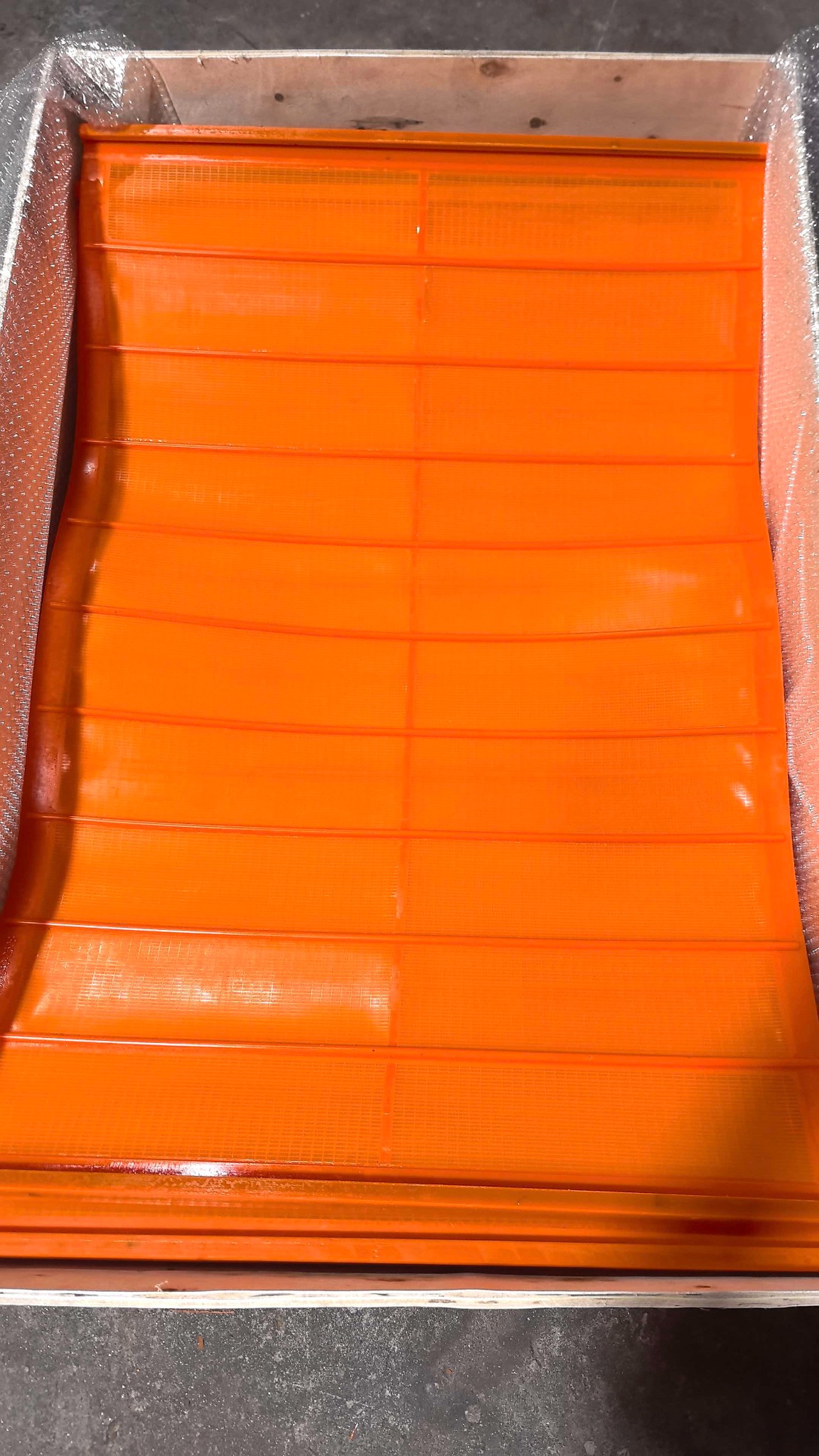

Screens are placed in wooden cases with protective cushioning suited to the product and shipping requirements. The photos show the panel in its case, with protective cushioning, and the packed case ready for dispatch.
Explore the complete screening range.
A 15-page catalogue covering polyurethane fine screens first, followed by other polyurethane, woven wire, wedge wire and self-cleaning screens. English and Russian in one PDF.
